卡扣式OWCN-FK系統
OWCN-FK CLIP IN SYSTEM
產品說明 PRODUCT DESCRIPTION
此系列產品安裝采用嵌入式，折邊嵌在暗架龍骨里，使結構更加牢固，板縫更加筆直。若折邊采用倒角，使吊頂輪廓線更加清晰，整體顯得美觀大方。有光板面板、標準孔面板、微孔面板供選擇。
● Concealed suspended system for monolithic effect.
● Make the structure more fastness and the panel’s gap more straight
● The edge adopted with chamfer, the ceiling profile more clear.
● Un-perforated panels, standard perforated panels and micro perforated panels for options.

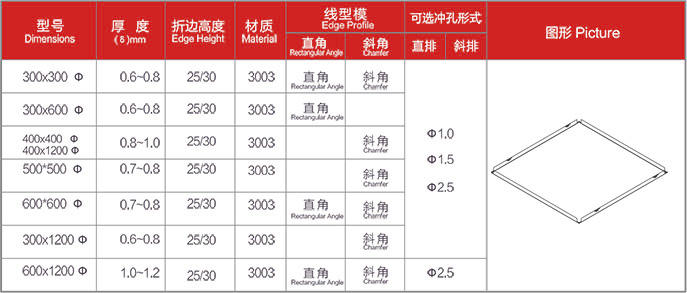

卡扣式系列鋁合金矩形板 ALUMINUM CLIP IN SYSTEM

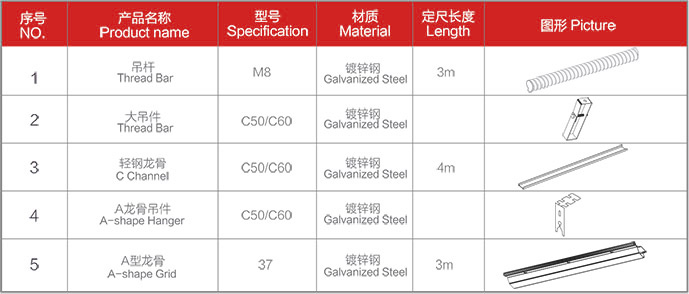

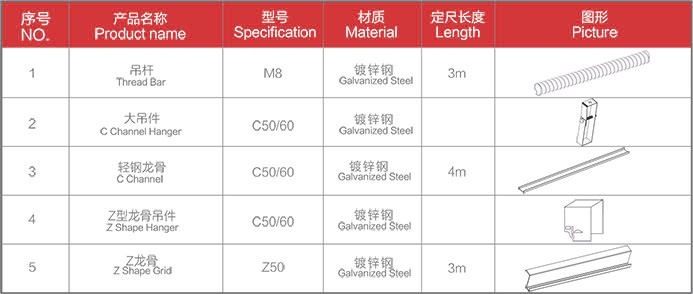

卡扣式系列矩形板選用附件表 CLIP IN SUSPENSION SYSTEM

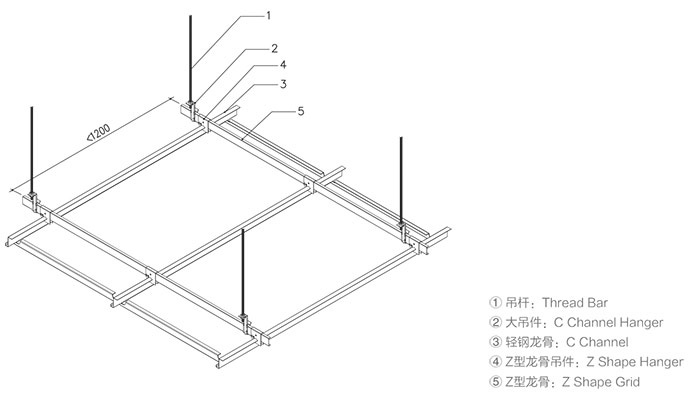

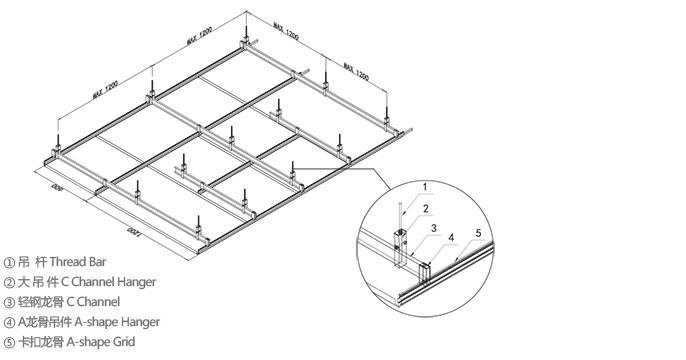

安裝結構示意圖 INSTALLATION AND ASSEMBLY DETAIL
鋪放式OWCN-FP系統
OWCN-FP SYSTEM
產品說明 PRODUCT DESCRIPTION
鋪放式方板采用擱式結構，施工方便，無需任何工具，每件可多次重復拆裝。明龍骨中黑色凹槽線與白色方板搭配，使吊頂顯得明快、色彩鮮明。有光板、標準孔面板、微孔面板供選擇。
● Standard grid systems, simple accessibility
● Contemporary appearance
Un-perforated panels, standard perforated panels and micro perforated panels for options.

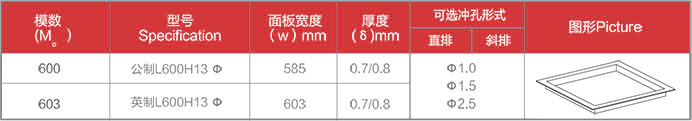

明架方板 LAY IN PANEL

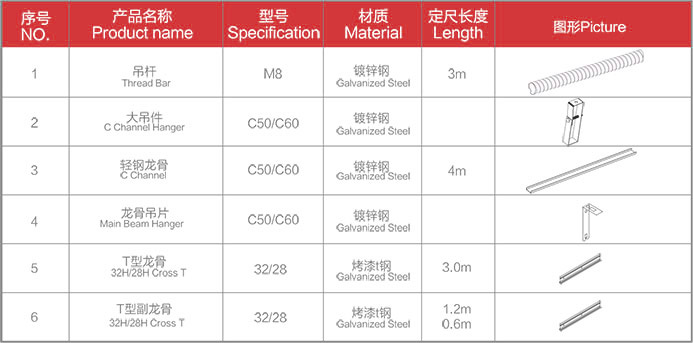

明架方板選用附件表 LAY IN SUSPENSION SYSTEM

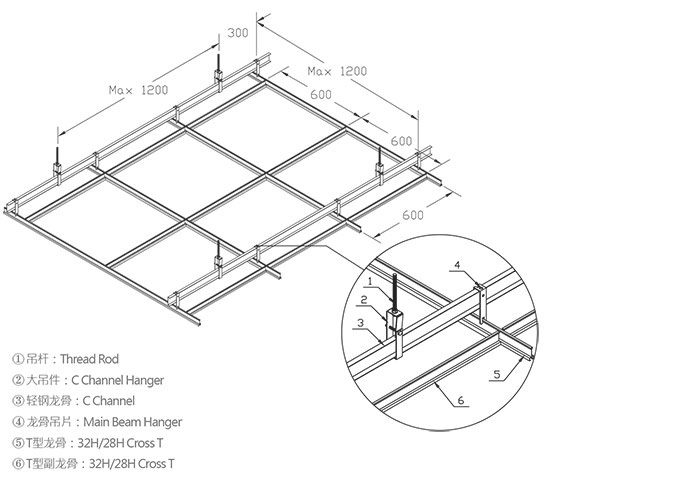

安裝結構示意圖 INSTALLATION AND ASSEMBLY DETAIL
懸掛式OWCN-FX系統
OWCN-FX SUSPENDED SYSTEM
產品說明 PRODUCT DESCRIPTION
懸掛式系統采用勾掛結構，施工方便，每件可多次重復拆裝。
有光板、標準孔面板、微孔面板供選擇。
● Hook-on grid systems, simple accessibility
●Un-perforated panels, standard perforated panels and micro
perforated panels for options.

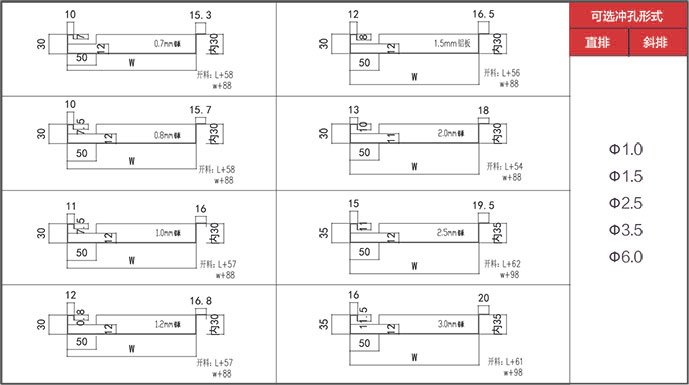

懸掛系列勾掛板 HOOK-ON PANEL
選用附件表 HOOK-ON SUSPENSION SYSTEM
安裝結構示意圖 INSTALLATION AND ASSEMBLY DETAIL
