OWCN-TU/TC系統

OWCN-TU/TC SYSTEM

產品說明 PRODUCT DESCRIPTION

TU/TC系列條型金屬板都是標準型天花板，多種寬度，而且長度可以定尺加工，因其線條流暢被用在車站、地鐵、機場等大型項目上較多。(TU為直角) (TC為斜角)。
TU/TC系列金屬吊頂有三種：面板光板、標準孔面板、微孔面板。

●TU/TC Plank System is a standard panel.

●It can be easily adapted to suit large projects such as station, metro and airport, etc. and unique aesthetical requirements by various panel sizes.(TU is rectangular angle and TC is bevel angle.)

●Un-perforated panels, standard perforated panels and micro perforated panels for options.

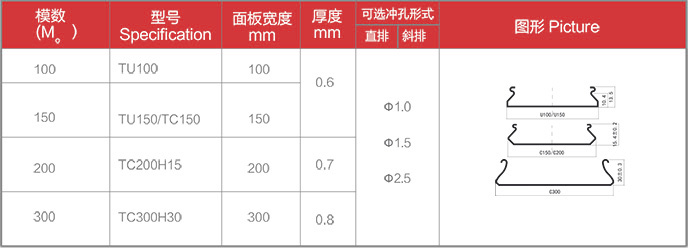

M系列條板 M PLANK SYSTEM

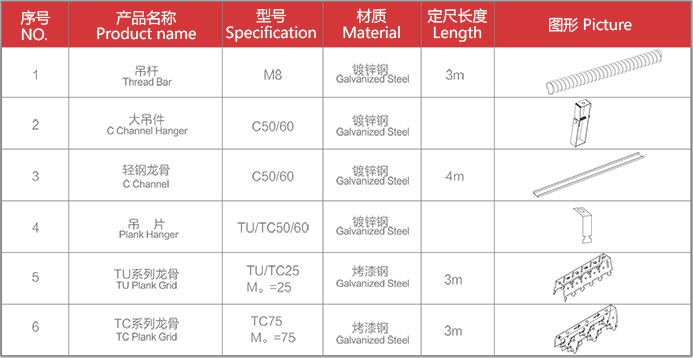

TU/TC系列條板選用附件表 TU/TC PLANK SUSPENSION SYSTEM

安裝結構示意圖 INSTALLATION AND ASSEMBLY DETAIL

OWCN-TG系統

OWCN-TG SYSTEM

產品說明 PRODUCT DESCRIPTION

產品說明：TG系列條型金屬板都是標準型天花板，多種寬度，而且長度可以定尺加工，
板面可沖孔，因其線條流暢被用在車站、地鐵、機場等大型項目上較多。

●TG Plank system is a standard panel.

●It can be easily adapted to suit large projects such as station, metro and airport, etc. and unique aesthetical requirements by various panel sizes.

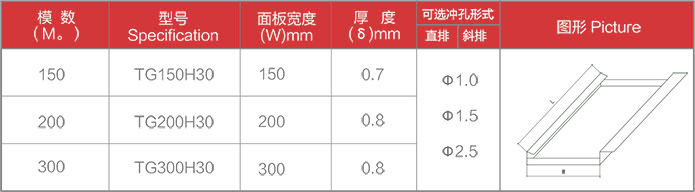

M系列條板 M PLANK SYSTEM

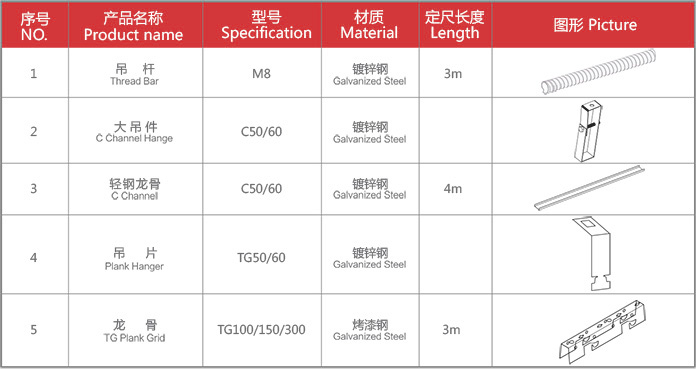

TG系列條板選用附件表 TG PLANK SUSPENSION SYSTEM

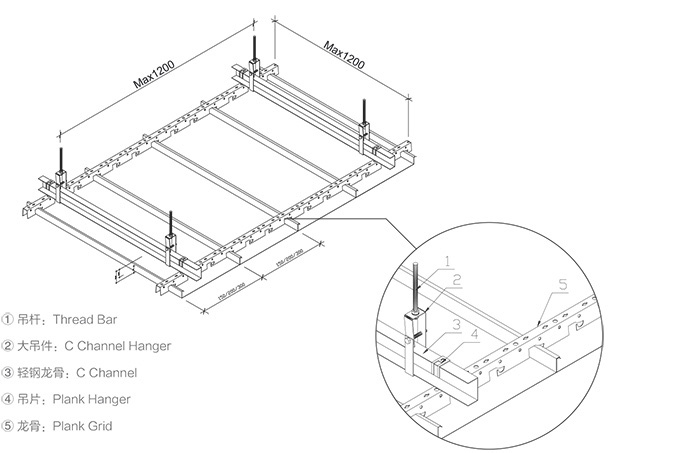

安裝結構示意圖 INSTALLATION AND ASSEMBLY DETAIL
